Introducing Ninja TX, the all-new addition to the Ninja family. It’s equipped with 12G-SDI and HDMI, so now you can monitor & record from any pro camera to ultra-fast CFexpress media or external USB-C storage. You also get built in Wi-Fi for C2C workflows and AirGluTM timecode for multicam projects, all in a lightweight, compact 5-inch form factor.
Key Features
- Record in Apple ProRes, Avid DNx or H.265/H.264
- Quieter, cooler temperature while using
- Capture to CFexpress Type B or USB-C storage
- Super-bright, 1500nit 5-inch touchscreen display
- HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
- Direct upload to ATOMOSphere, Frame.io, Dropbox
- Timecode sync over RF or Bluetooth
- Powered by USB-C, NP-F battery or AC adaptor
- Get 20GB cloud storage FREE with ATOMOSphere

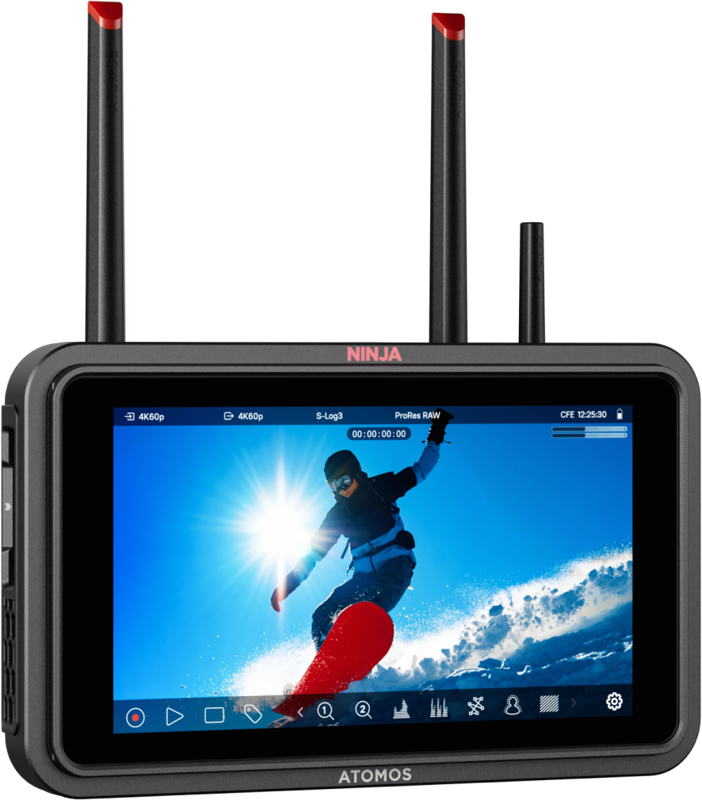

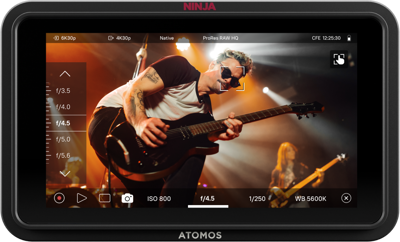

50% brighter 1500 nit screen
Ninja TX’s 1500 nit screen is now 50% brighter, and is packed with pro monitoring features like EL Zone™ false color, focus peaking, waveform, RGB parade, vectorscope and more! All Ninja models feature the Atomos OS combined with the 5-inch touchscreen interface to give you far more control of your shot, and displaying more detail than your camera’s built-in display.
Resolution and frame rates
The Ninja series supports a wide range of resolutions and frame rates, depending on the output of your camera: up to 120fps at HD resolution, up to 60fps at 4K UHD/DCI and up to 30fps at 8K UHD/DCI resolution. Shooting in higher frame rates is typically used for slow motion playback or fast action scenes.
LOG formats & Proffessional monotoring tools
All Atomos monitor-recorders support a wide variety of LOG profiles from the most popular camera manufacturers, including Sony, Canon, Panasonic, Nikon, Fujifilm, ARRI, and RED. Being able to work with LOG profiles allows for greater dynamic range and more flexibility in color grading during post-production.
The Ninja range offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). Additionally, Ninja provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups. Ninja ofcourse also supports real-time LUT and customs LUT's can be loaded from external media.
Record to CFexpress and more!
Atomos invented the concept of a monitor that also records to high capacity, inexpensive removable media. Ninja and Ninja Ultra use removable SSD Drives*, and now with Ninja TX you can choose to record on either CFexpress* or an external hard drive* with high-speed USB-C connection. Now you have even more recording media options!
*Storage media purchased separately. Minimum performance / certification requirements apply
Integrated wireless featuresNinja TX comes with everything included for Wi-Fi cloud connectivity, including 20GB of free ATOMOSPHERE storage and the ability to share footage with anyone, anywhere. Just as with Ninja or Ninja Ultra (fitted with Atomos Connect), you can upload directly to camera to cloud platforms like frame.io and Dropbox, or transmit and receive NDI 6 / HX3 streams.

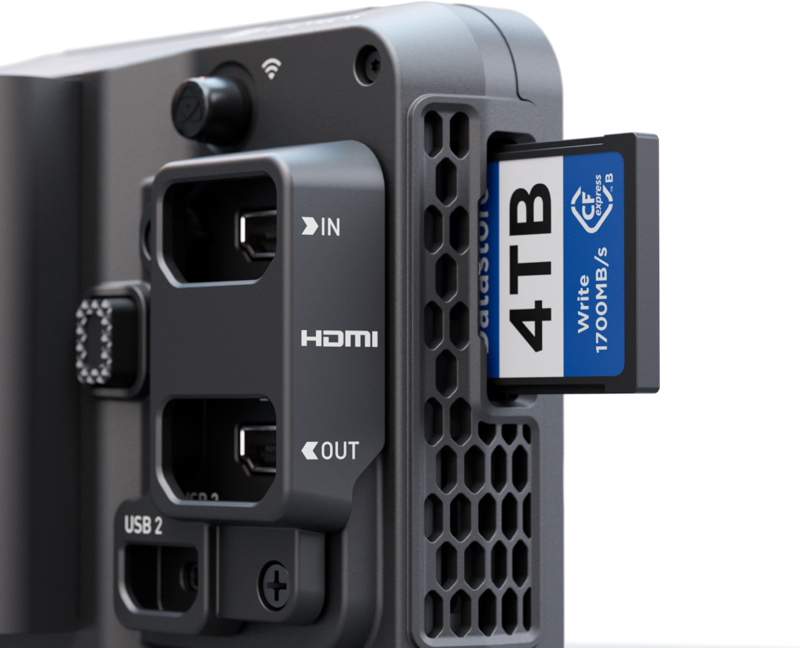

CFexpress
Ninja TX takes performance to the next level with support for high-speed CFexpress Type B cards (sold separately). This cutting-edge media format gives you faster read/write speeds, higher resolutions, and more reliable recording – ideal for demanding workflows up to ProRes RAW 8K30p.

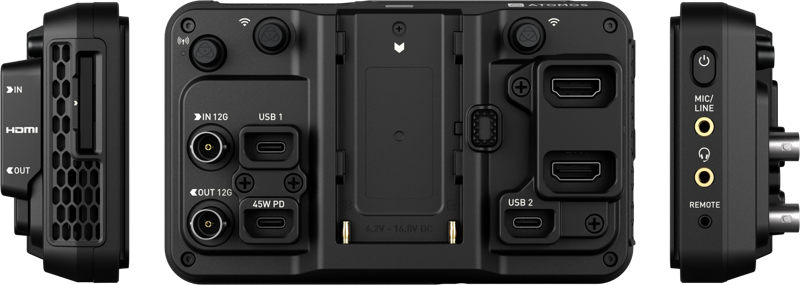

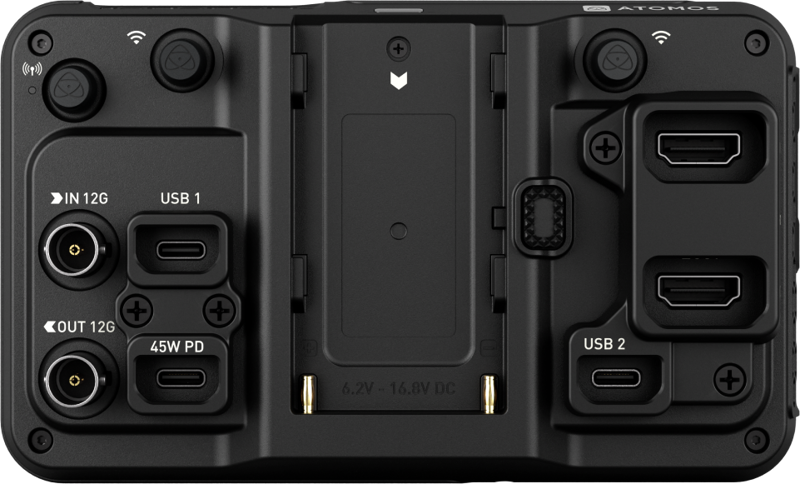

12G-SDI in / out
Ninja TX expands its professional versatility with the addition of 12G-SDI input and output, complementing its existing HDMI 2.0 connections. Having both SDI and HDMI built in supports a wider range of cameras and production workflows. SDI also enables long cable runs, making the Ninja TX a reliable hub in multicam, on-location, or studio workflows.

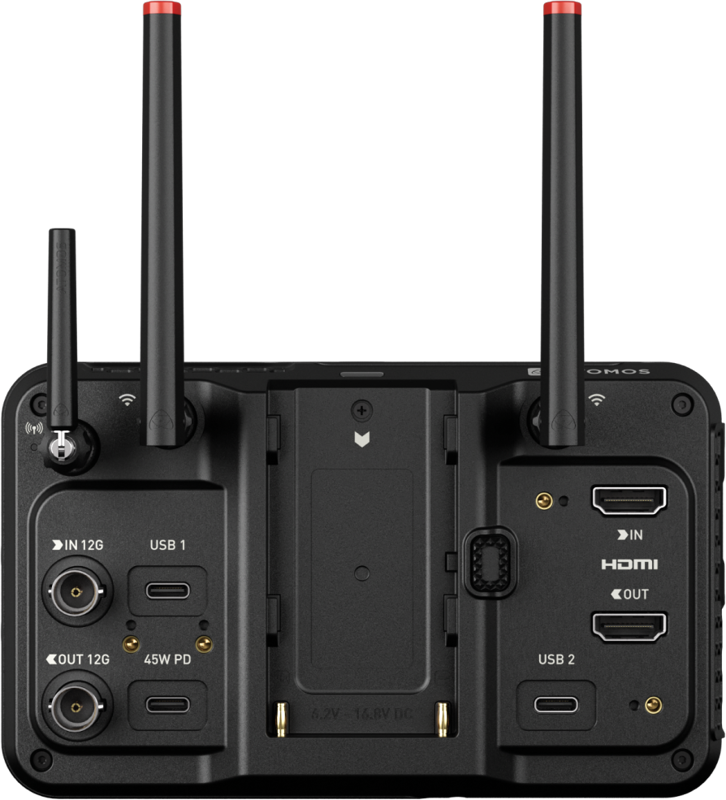

USB-C
Ninja TX has three USB-C ports, one of which is used to power the device. The other two USB-C ports open the door to the direct attachment of external storage media and monitor calibration. It’s a future-ready addition designed to keep pace with evolving content creation needs.
Ninja TX has three USB-C ports, one of which is used to power the device. The other two USB-C ports open the door to the direct attachment of external storage media and monitor calibration. It’s a future-ready addition designed to keep pace with evolving content creation needs.
Unique cable locking system
Atomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables. Ninja TX comes with special brackets to facilitate this, and a USB-C locking cable. With Atomos locking cables you get the most robust cable system available today.
Multiple Power Options
Ninja TX supports multiple power options, ranging from USB-C PD, NP-F battery or an optional battery eliminator. Requires the separately available Atomos Locking AC Power Adapter to provide power. (Purchased separately)
What’s in the box?
- Ninja TX unit
- USB-C locking cable adaptor/li>
- USB-C locking cable (45cm)
- HDMI locking cable adaptor
- Wi-Fi antenna + antenna caps
- AirGlu antenna + antenna caps
- Quick Start Guide
